1. Product Introduction
Standardized Protection for Modern Logistics
The EU Series ESD Standard Box is the definitive solution for the storage and transport of static-sensitive electronic components within automated supply chains. Engineered to comply with European standard dimensions (Euro-Norm), these boxes offer seamless integration with 1200×800mm and 1200×1000mm pallets, making them the preferred choice for the automotive, electronics, and precision manufacturing industries.
Unlike temporary anti-static coatings, our EU series is manufactured from impact-resistant conductive polypropylene (PP). This ensures permanent electrostatic discharge (ESD) protection that will not degrade over time, wash off, or wear out. Whether you are managing a high-density automated warehouse (AS/RS) or a manual assembly line, the EU Series delivers structural rigidity and reliable safety for your valuable components.
2. Key Features
- ⚡ Permanent ESD Protection:
- Surface Resistance: 104−106Ω (Conductive type).
- The conductive material is injection-molded into the plastic matrix, creating a Faraday cage effect that shields contents from external electrostatic fields.
- 📦 Euro-Standard Dimensions:
- Modular sizes (300×200, 400×300, 600×400 mm) allow for perfect stacking on standard pallets, maximizing truck and warehouse space efficiency.
- 🤖 Automation Ready:
- Designed with reinforced rims and a smooth, flat bottom to run quietly and stably on conveyor belts, roller tracks, and automated sorting systems.
- 💪 Heavy-Duty Construction:
- Vertical ribbing provides superior load-bearing capacity (stacking load), preventing deformation even when stacked high with heavy metal parts or PCBs.
- ✨ Ergonomic Design:
- Features comfortable, integrated handles for safe manual handling and smooth internal walls for maximum usable volume and easy cleaning.
3. Product Specifications
Note: All dimensions are listed as Length x Width x Height (mm).
| Model (型号) | External Dimensions (外规格) | Internal Dimensions (内规格) | Volume / Note |
|---|---|---|---|
| EU2311 | 300 x 200 x 120 mm | 265 x 165 x 110 mm | Small Parts Storage |

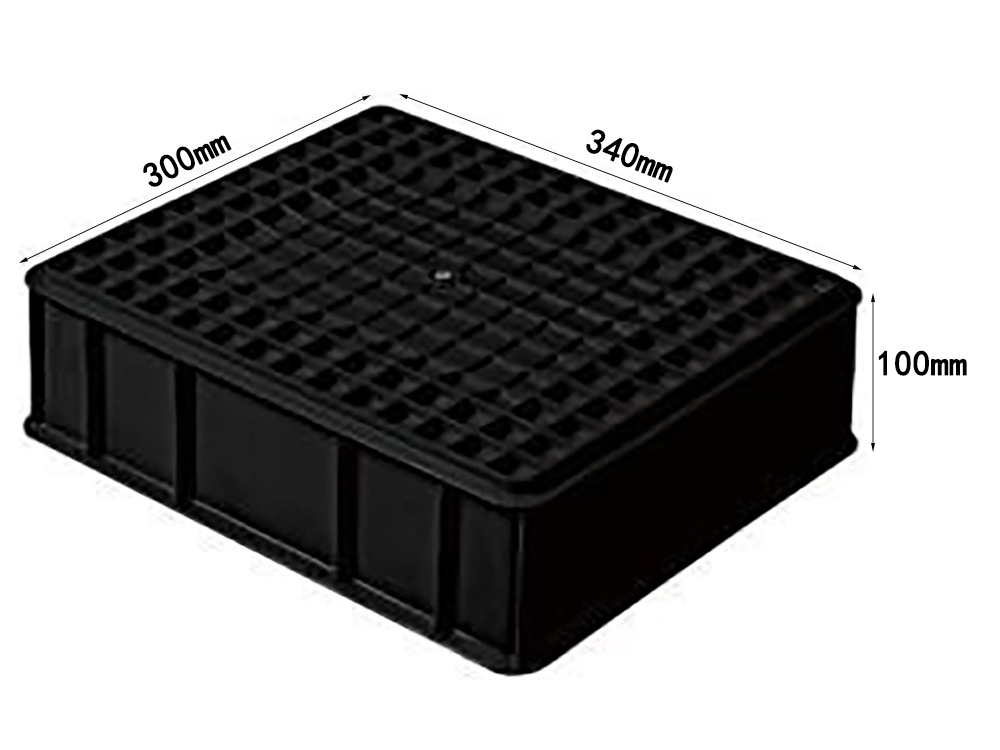

| EU3310 | 340 x 300 x 100 mm | 325 x 275 x 90 mm | Low Profile |

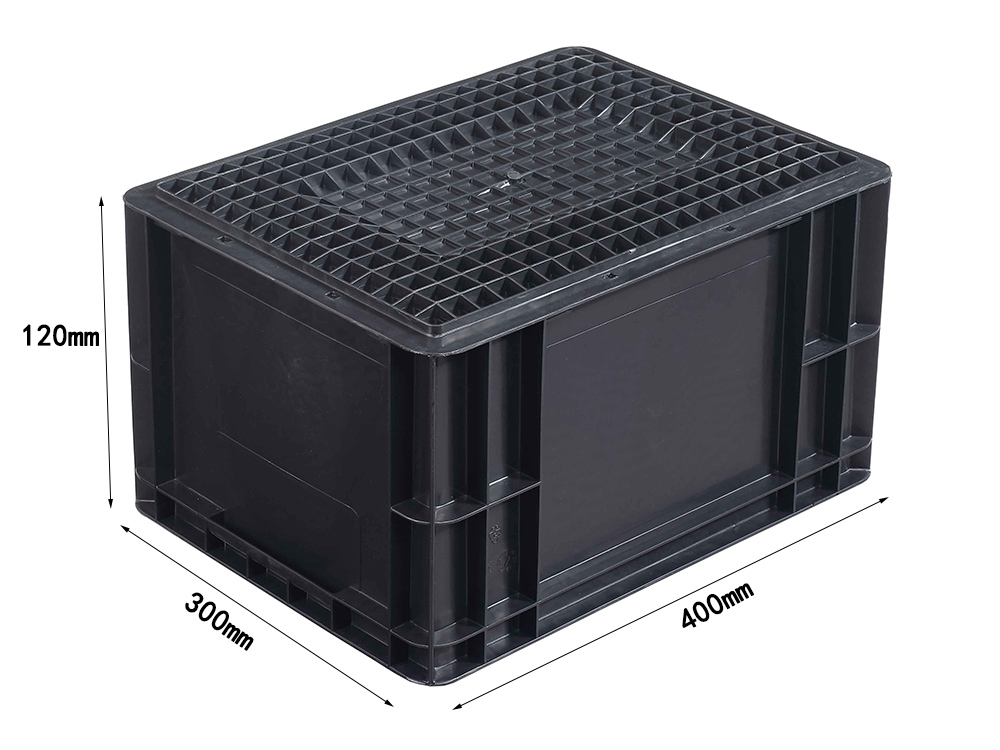

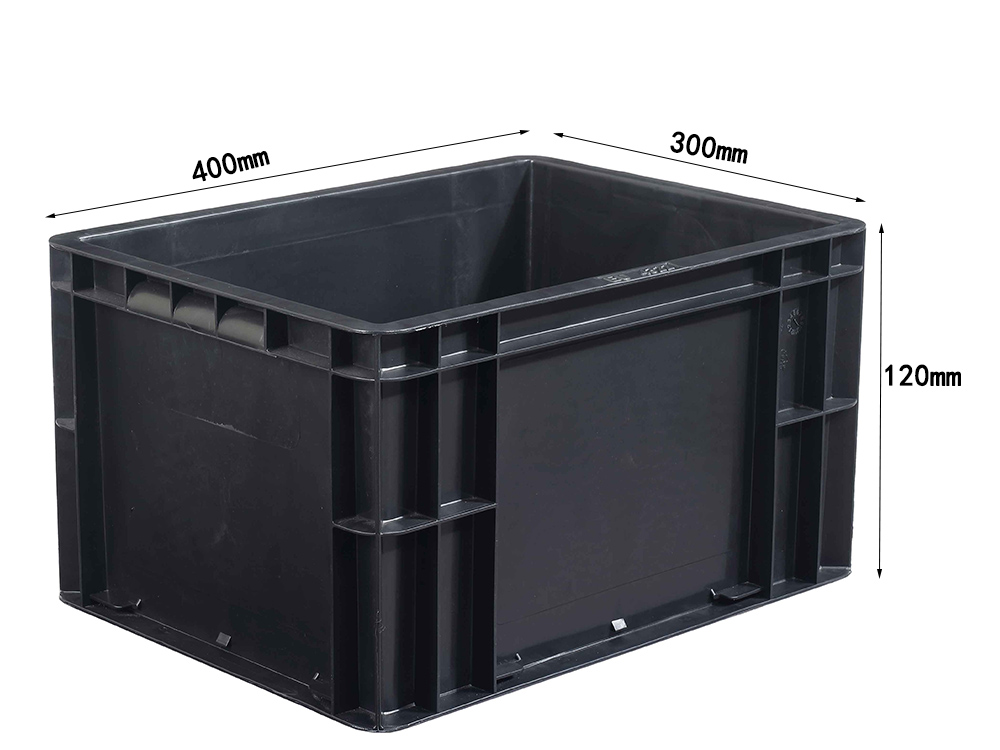

| EU4311 | 400 x 300 x 120 mm | 365 x 265 x 110 mm | Medium Shallow |

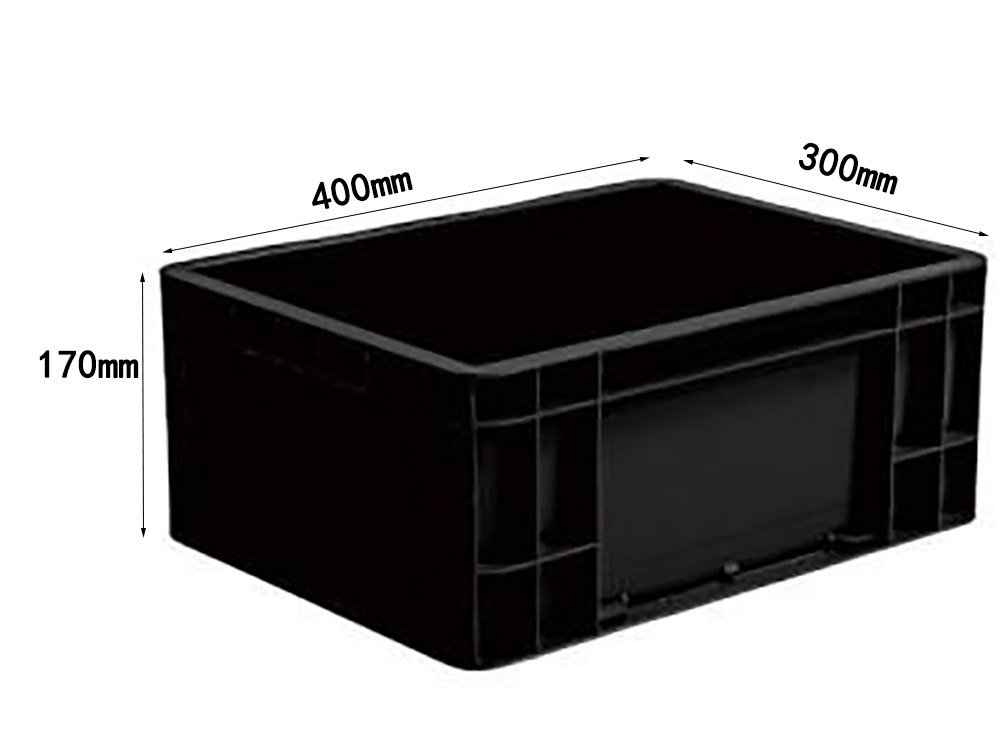

| EU4316 | 400 x 300 x 170 mm | 365 x 265 x 160 mm | Medium Standard |
| EU4322 | 400 x 300 x 225 mm | 370 x 265 x 215 mm | Medium Deep |
| EU4611 | 565 x 365 x 110 mm | 570 x 370 x 220 mm* | Large Shallow |
| EU4616 | 600 x 400 x 175 mm | 570 x 370 x 163 mm | Best Seller (Standard) |
| EU4628 | 600 x 400 x 290 mm | 570 x 365 x 280 mm | Large Deep |
| EU4633 | 600 x 400 x 340 mm | 565 x 365 x 330 mm | Extra Deep |
(Note on EU4611: Please verify the internal height data from your physical product, as the image text had a slight anomaly, but the table above reflects the image data strictly.)
4. Ideal Applications
- Automotive Electronics: Safe transport of ECUs, sensors, and navigation modules between Tier-1 suppliers and OEM assembly plants.
- Automated Warehousing: Perfect for Miniload systems and conveyor-based logistics centers due to the standardized flat bottom.
- PCB Assembly: Storing semi-finished printed circuit boards (often used with internal PCB holder inserts).
- Cleanroom Logistics: The smooth, low-dust material makes them suitable for controlled manufacturing environments.
5. FAQ
Q: What is the difference between "Conductive" and "Anti-static"? A: Conductive boxes (like our EU Series) have a lower electrical resistance (104−106Ω), allowing charges to drain away instantly when grounded. This is critical for highly sensitive components. Standard "Anti-static" (pink/blue) materials usually have a higher resistance (109−1011Ω) and are better for preventing charge generation rather than shielding.
Q: Are lids available for the EU Series? A: Yes, we offer matching conductive lids (loose-fitting or hinged) for all standard sizes (400x300 and 600x400 footprints) to protect against dust and physical damage.
Q: Can these boxes be washed? A: Absolutely. The conductive properties are intrinsic to the material. You can wash them with industrial cleaners or water without affecting their ESD performance.
Q: Do these boxes have label holders? A: Most EU series boxes come with integrated cardholders or textured areas for adhesive labels, allowing for easy Kanban management or barcode tracking.
